Cleverscope Triggering System

Precision You Can Trust
NABL-Accreditied Calibration | Available on Request

The Cleverscope Triggering System offers advanced triggering options for accurate signal capture and analysis. It allows users to trigger on various conditions, including amplitude, duration, time, and count, using both analog and digital inputs. The system supports mixed signal triggering, making it ideal for complex signal investigations like PAL video signals and mixed signal designs..

Request Purchase
  • Detail
  • Special Features
  • Specification

The Cleverscope Triggering System is an advanced toolset for capturing signals with precise control over the trigger conditions. It supports both analog and digital inputs, allowing for a wide range of triggering setups to suit different use cases. The system’s capabilities include:

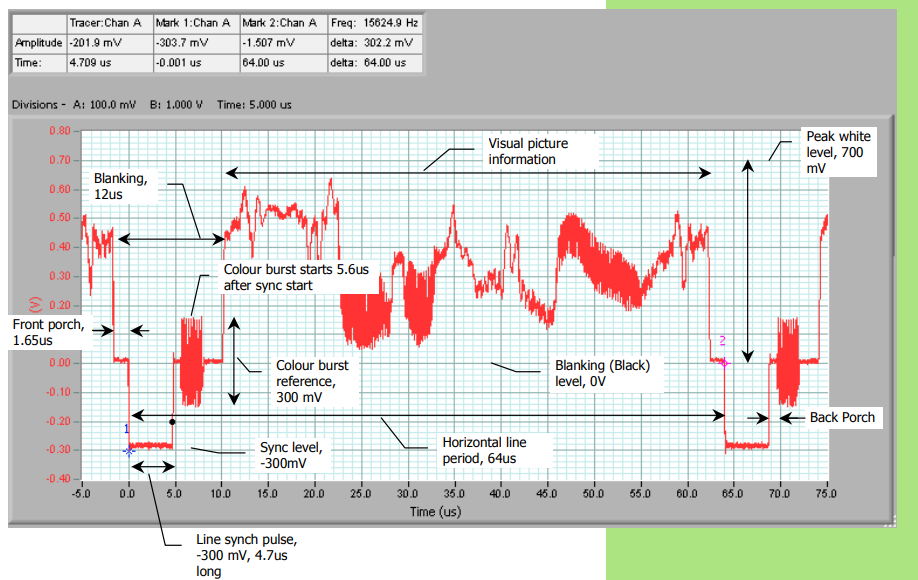

  • PAL Video Triggering: Specifically designed to handle PAL video signals, Cleverscope’s system can trigger on specific parts of the video signal such as sync pulses, color bursts, and field transitions.

  • Single Pulse and Duration Triggering: Captures single pulses or events with a defined duration, useful for detecting glitches or signal irregularities.

  • Amplitude and Duration-Based Triggering: Trigger events based on both amplitude and duration, perfect for detecting runt pulses and other irregularities.

  • Rise/Fall Time-Based Triggering: Set precise thresholds for the rise or fall times of edges, ensuring accurate capture of signal transitions.

  • Count-Based Triggering: Set a trigger count to capture multiple occurrences of specific events, providing insights into repetitive signal patterns.

Mixed Signal Triggering allows Cleverscope to handle complex applications, like digital clocking signals combined with analog waveforms, enabling users to synchronize multiple signals for thorough analysis.

  • Dual Trigger Setup: Use Trigger 1 and Trigger 2 for complex event capture based on time, amplitude, and count.

  • Mixed Signal Triggering: Combine digital and analog triggers for more intricate signal analysis.

  • Multiple Trigger Types: Includes edge, pulse/width, runt, logic, rise/fall time, and video triggers.

  • Precise Time Base: Triggers can be set with 10 ns resolution for high-accuracy signal analysis.

  • Count-Based Triggering: Trigger on a specified count of events, offering enhanced control for capturing repetitive signals.

  • Complex Event Duration: Trigger on events based on amplitude and time duration, including runt pulse detection.

  • Video Signal Triggering: Specially designed to trigger on PAL video signals with customizable pulse duration and frequency.

Parameter Details
Triggering Types Edge, Pulse/Width, Runt, Logic, Rise/Fall Time, Video
Mixed Signal Capability Yes, supports analog and digital inputs simultaneously
Amplitude Range Adjustable trigger levels for both analog and digital signals
Trigger Resolution 10 ns
Count-Based Triggering Trigger on a specified count of events (1 to 2.147 x 10^9)
Period Trigger Trigger on specific period ranges (10ns to 42.9s)
Video Signal Support PAL video signal support for sync pulses and color burst detection
Signal Capture Duration Configurable capture from 10 ns to 42.9 seconds
Digital Input Triggering Yes, with customizable threshold settings
Trigger Sources Channel A, Channel B, External Trigger, Digital Inputs
Advanced Event Detection Supports amplitude and duration-based event triggering
Display Real-time capture with zoom and resolution adjustments
External Triggering Yes, with BNC input for additional external signals
